Granhult · AC/DC TIG · stick

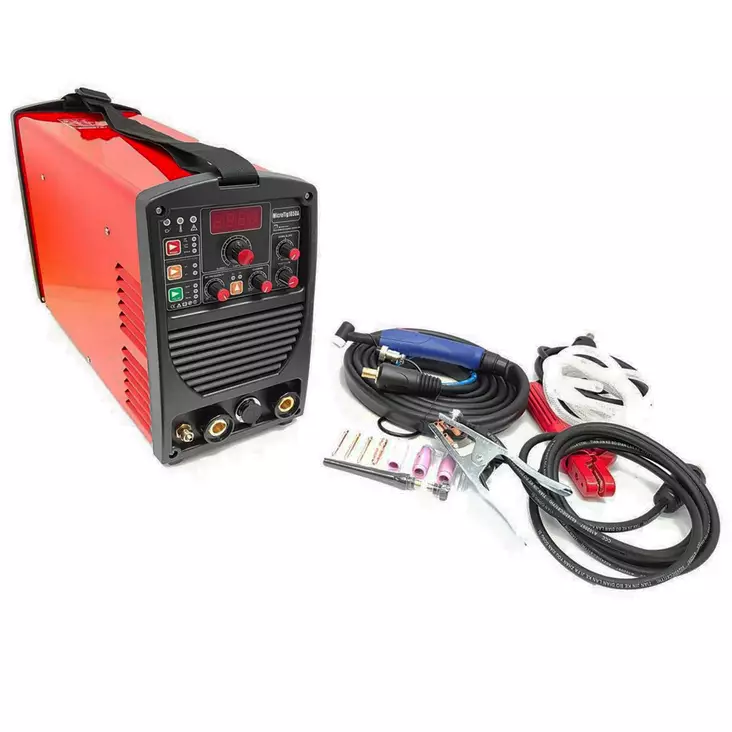

MicroTIG 185DA
Compact AC/DC TIG for a standard socket.
Input U1230 V 1~
Output I2185 A
Rating185 A @ 35 % · 40 °C
The MicroTIG 185DA is the most compact Granhult AC/DC machine. 230 V input and straightforward controls make it a welder that moves from job to job. Aluminium, steel, stainless and titanium on one machine.
Price, stock and delivery at the Tuontitukku.fi webshop
Overview
HF start ignites the arc without touching the work, so the tungsten stays clean and the start point stays tidy. Pulse has three positions (1 Hz, 50 Hz or off), which covers most thin-sheet work without complicated set-up.

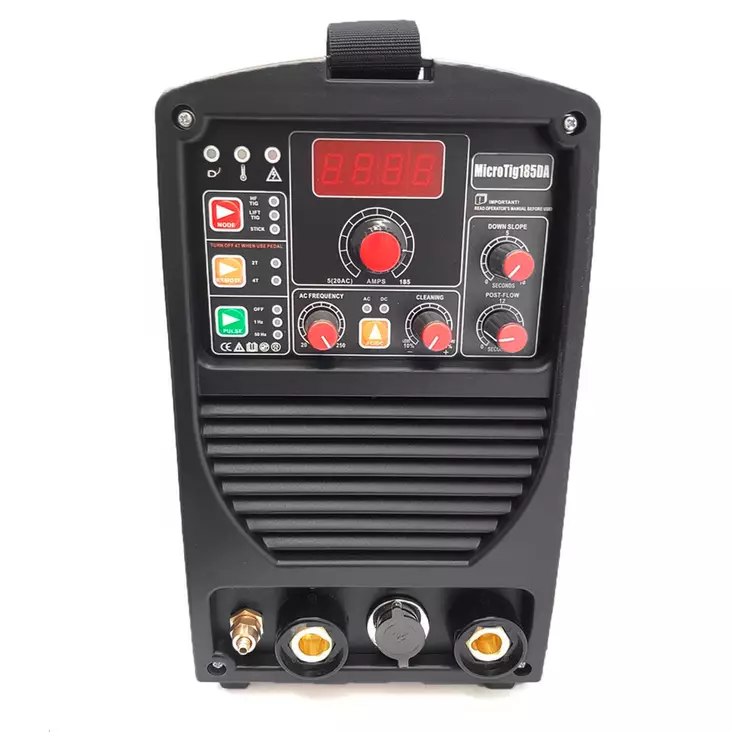

AC balance, AC frequency, downslope and post-flow are set from the digital panel.
You will also need an argon cylinder with regulator, tungsten electrodes and filler rod.
Technical data
Electrical
| Input voltage | 230 V, single-phase |
|---|
TIG
| TIG output | DC 5–185 A · AC 20–185 A |
|---|---|
| TIG duty cycle (40 °C) | 35 % at maximum current |
Stick (MMA)
| Stick output | up to 150 A |
|---|
Controls
| Pulse frequency | 1 Hz / 50 Hz / off |
|---|---|
| AC balance | adjustable |
| AC frequency | adjustable |
| Downslope | adjustable |
| Post-flow | adjustable |
| Arc start | HF |
| Torch trigger | 2T / 4T |
Build
| Torch | TIG torch, 4 m |
|---|---|
| Work cable | 3 m |
| Enclosure rating | IP21S |
| Warranty | 24 months |
