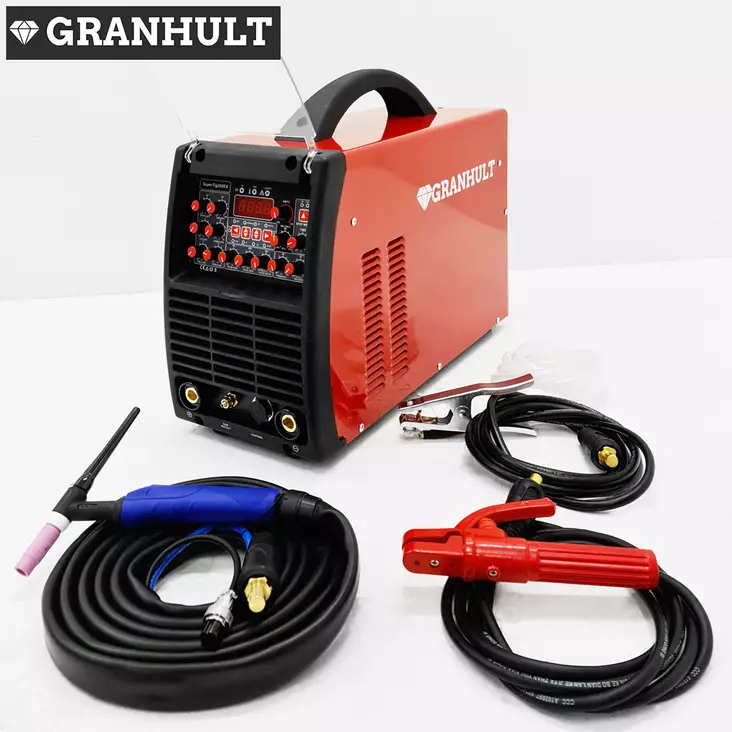

SuperTIG 200EX
Full AC/DC control from a standard 230 V socket.

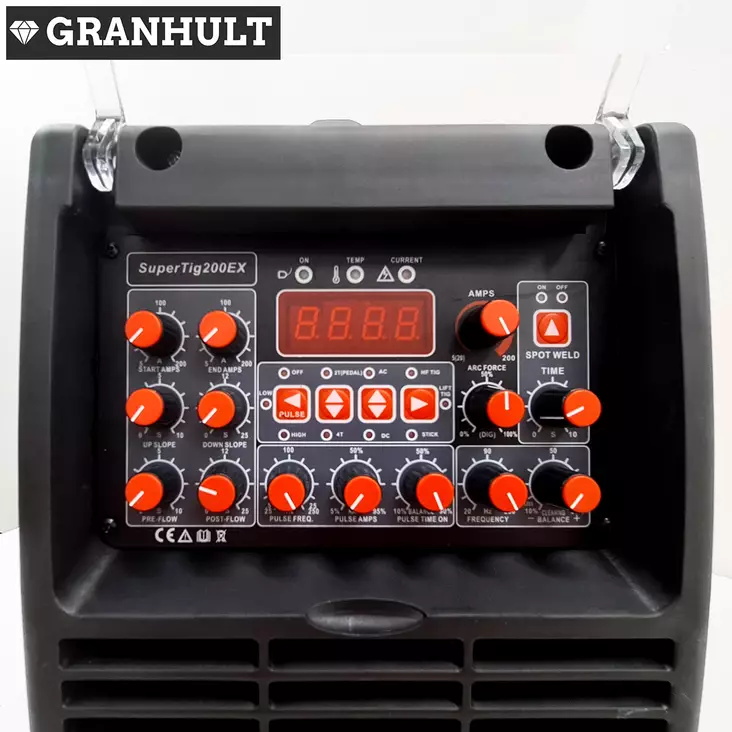

The SuperTIG 200EX brings EX-series controls to a 230 V machine. Square-wave AC, AC balance, AC frequency, pulse, slopes and gas timers are all set from the front panel. The machine is ready for a foot pedal and a water-cooled torch.

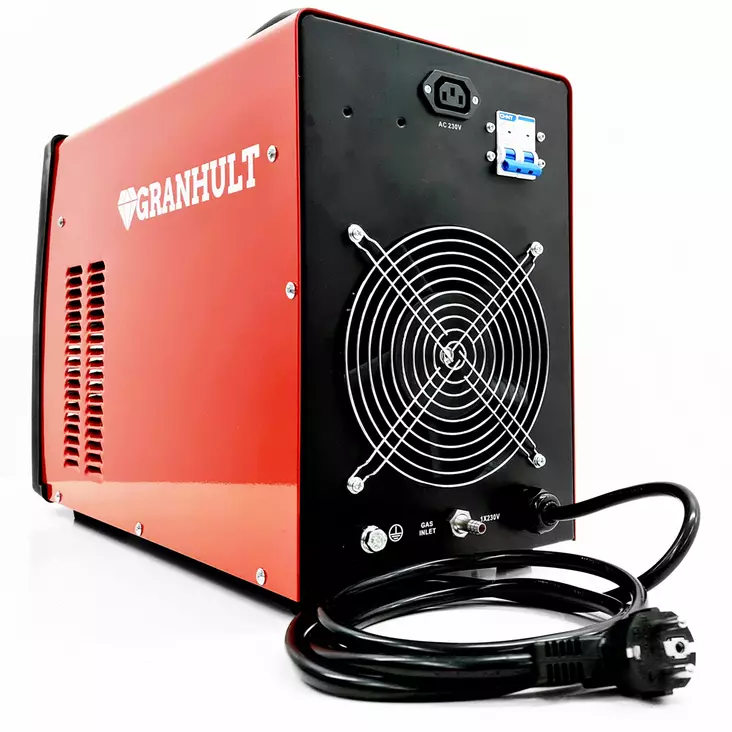

Because it runs on single-phase 230 V it goes wherever three-phase power is not available. It weighs about 25 kg and the enclosure is IP21.
Pulse reduces heat input on thin sheet. A low pulse rate helps pace the filler rod; a higher one narrows the arc on thin aluminium.
Technical data
Electrical
| Input voltage | 230 V, single-phase, 50–60 Hz |
|---|---|
| Open-circuit voltage | 60–80 V |
| Efficiency | 83 % |
TIG
| TIG output | DC 5–200 A · AC 5–200 A |
|---|---|
| TIG duty cycle (40 °C) | 160 A @ 60 % · 120 A @ 100 % |
| AC waveform | square wave |
Stick (MMA)
| Stick output | 5–160 A |
|---|
Controls
| Pulse frequency | adjustable |
|---|---|
| AC frequency | 20–250 Hz |
| AC balance | 10–90 % |
| Upslope | 0–10 s |
| Downslope | 0–10 s |
| Pre-flow | 0–10 s |
| Post-flow | 0–30 s |
| Arc start | HF, non-contact |
| Torch trigger | 2T / 4T |
| Foot pedal | supported, optional |
Build
| Enclosure rating | IP21 |
|---|---|
| Dimensions (L × W × H) | 515 × 220 × 395 mm |
| Weight | approx. 25 kg |
| Warranty | 24 months, including professional use |
