Granhult · Plasma cutter
PL50D
Plasma from a regular socket.
Input U1230 V 1~
Output I250 A
Rating20 mm max · 10–12 mm clean

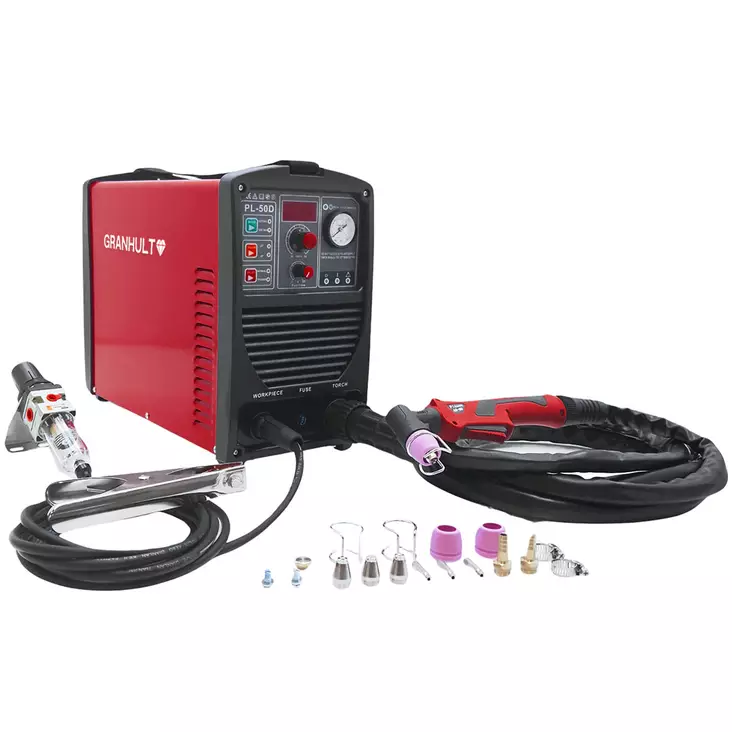

The PL50D is a 230 V plasma cutter for everything from body panels to structural steel. It cuts up to 20 mm and gives a clean cut to 10–12 mm. The HF pilot arc also starts on rusty surfaces.
Price, stock and delivery at the Tuontitukku.fi webshop
Overview
Overheat and pressure sensors protect the machine, and adjustable post-flow extends nozzle life. Weighs 15 kg.
Requires compressed air (6 bar, 200 l/min).
Technical data
Electrical
| Input voltage | 230 V, single-phase |
|---|---|
| Fuse | 16 A |
| Input current | 31 A (inrush max 37 A) |
| Open-circuit voltage | 200 V |
Plasma cutting
| Plasma output | 50 A |
|---|---|
| Severance cut, max | 20 mm |
| Clean cut, max | 10–12 mm |
| Air supply | 6 bar · 200 l/min |
| Arc start | HF pilot arc |

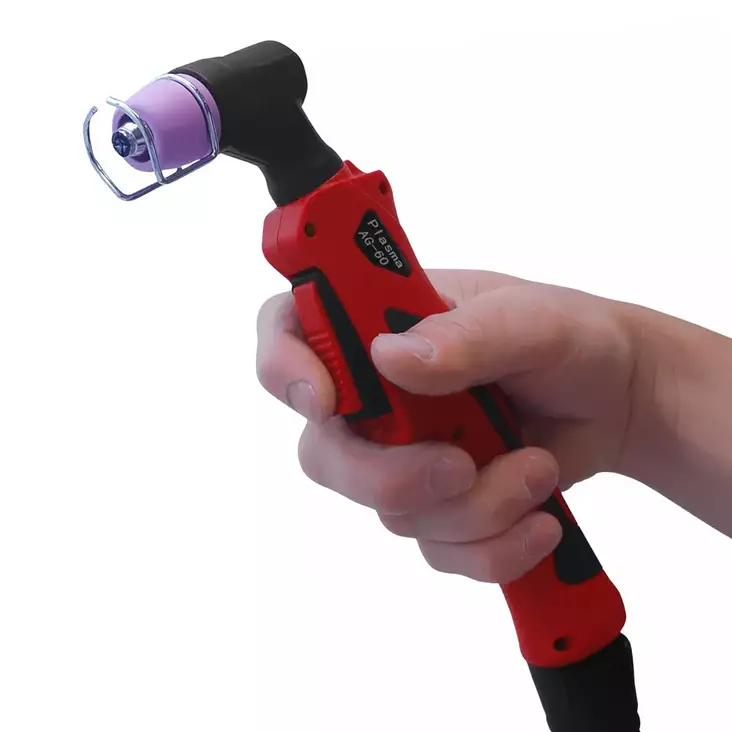

| Torch trigger | 2T / 4T |
Build

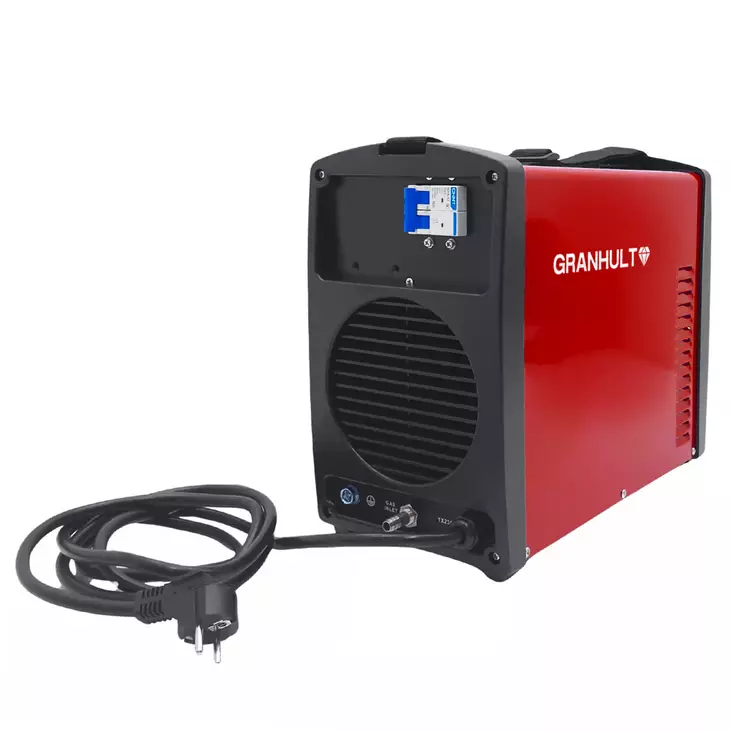

| Cooling | fan / air |
|---|---|
| Dimensions (L × W × H) | 406 × 178 × 330 mm |
| Weight | 15 kg |
| Warranty | 24 months |
